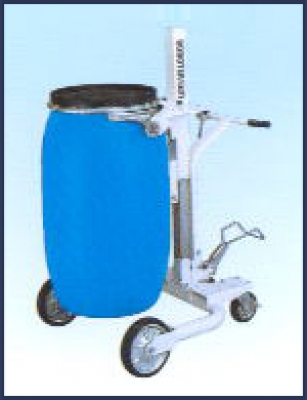

RX-K : Conveyance of Polyethylene Drums
The antlers can grip drums with a rim neck diameter from 470 to 570 mm.
RX-K : Conveyance of Polyethylene Drums
The antlers can grip drums with a rim neck diameter from 470 to 570 mm.
Model | RX-K |
---|---|
Load capacity / kg | 300 |
Distance between front wheels / mm | 650 |
Overall width / mm | 890 |
Overall length / mm | 1090 |
Overall height / mm | 1040 |
Chuck height / mm | 710~1220 |
Lifting storoke / mm | 340~ |
Lift per pedal press / mm | 17 |
Pedal operating force / kg | 25 |
Front wheels | φ250 rubber × 2 |
Rear wheels | φ150 rubber × 2 |
Net weight / kg | 83 |
Chuck diameter / mm | φ470~1570 |
Overall protrusion of drum rim neck | 7mm or greater |
